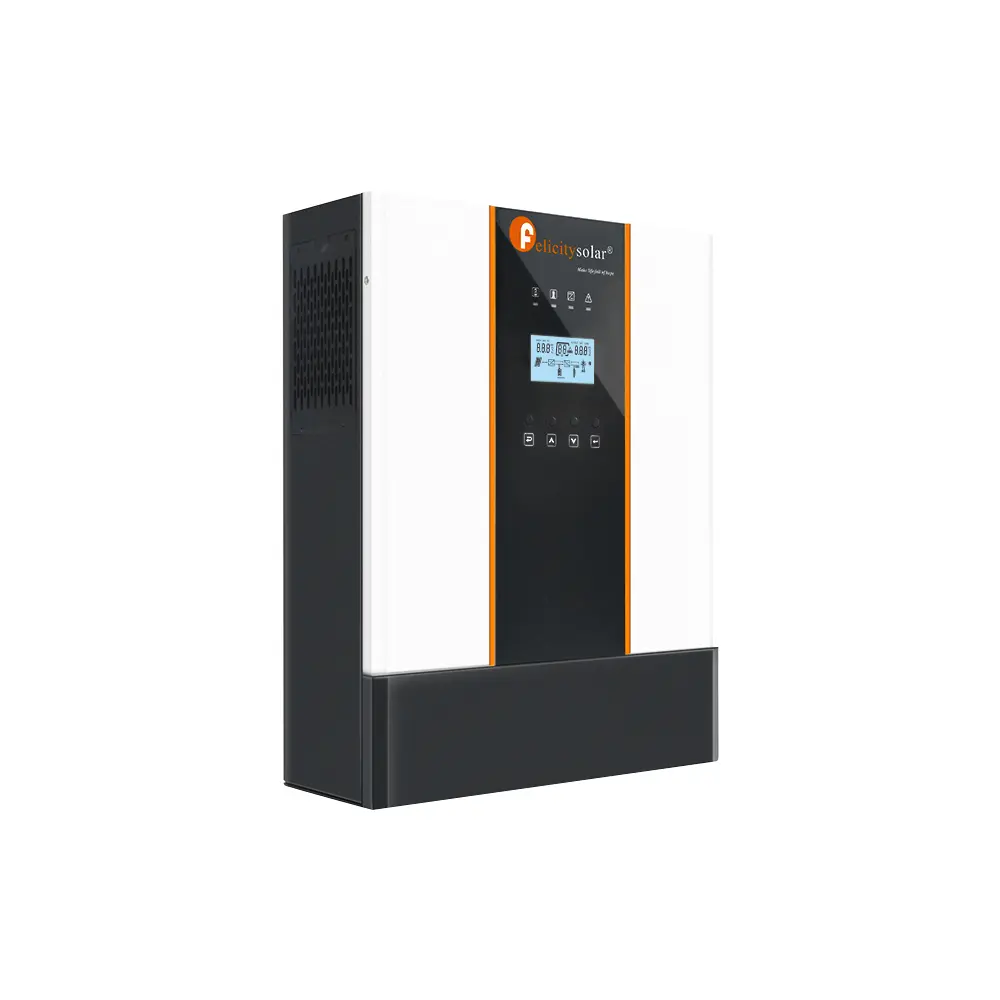

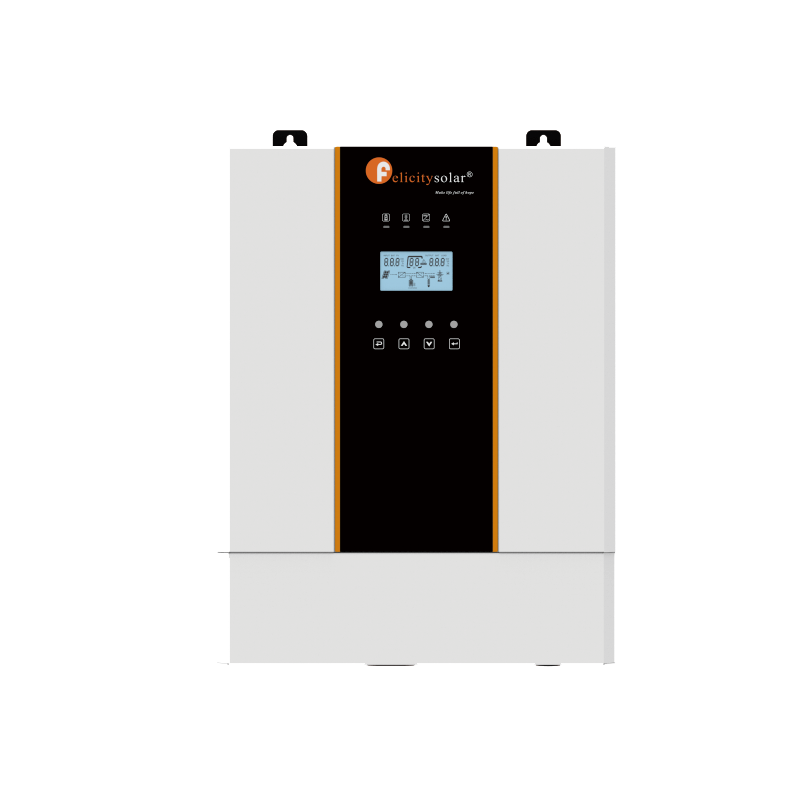

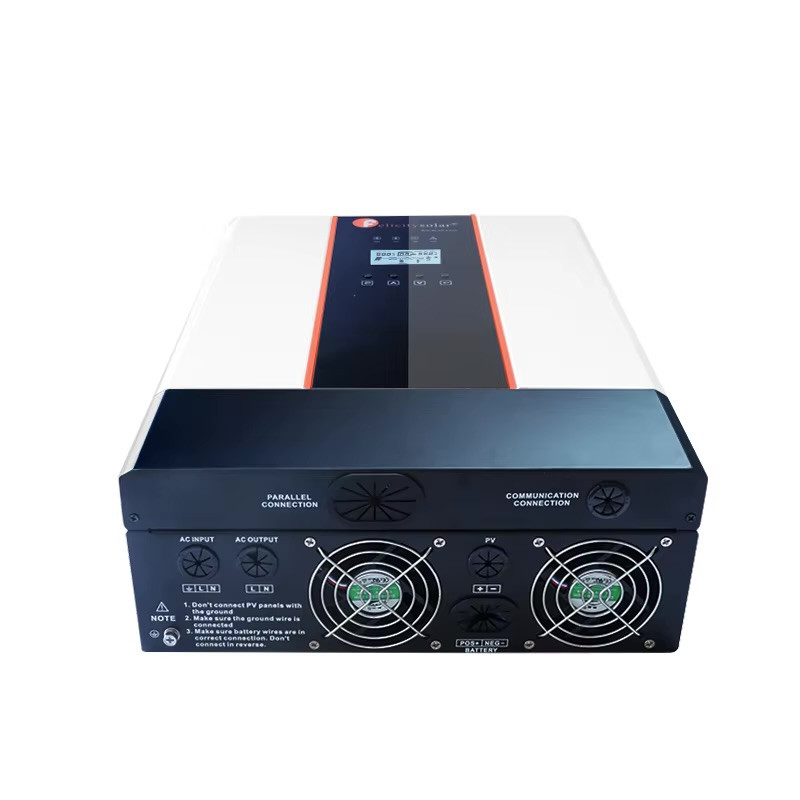

FELICITY IVEM 3KVA 24V HYBRID INVERTER

The 3kVA IVEM Felicity inverter is a hybrid solar inverter with a 24V nominal DC input voltage, a pure sine wave output, and an integrated MPPT solar charge controller. Key specifications include a 3000W rated power, a maximum PV input voltage of 450V (sometimes listed as 500V), and compatibility with both mains/generator power and various battery configurations. It also features configurable settings for AC/solar priority and charging current, along with a cold start function.

Technical specifications

Capacity: 3000VA / 3000W

Nominal DC Input Voltage: 24V

Output Waveform: Pure sine wave

Built-in MPPT Charge Controller: Yes, with a maximum PV input voltage of 450V to 500V

Output Voltage: 230Vac±5%

Configurable Input Voltage Range: Yes, via LCD setting

Configurable Battery Charging Current: Yes, via LCD setting

Configurable AC/Solar Charger Priority: Yes, via LCD setting

Mains/Generator Compatibility: Yes

Auto Restart: Yes, while AC is recovering

Cold Start Function: Yes, can run on panels alone without a battery

Efficiency: Typically over 90%

Parallel Capability: No (specifically for the 3kVA model)
